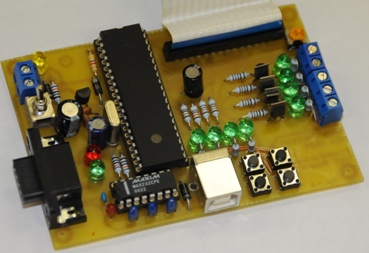

MC-1: Micro Controller Development Unit

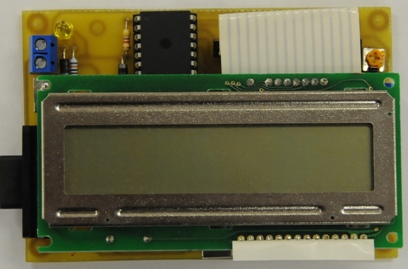

The MC-1 is a small scale microcontroller development unit that provides 4 switch inputs, 4 MOSFET based solenoid or relay outputs, USB, LCD and RS-232 interfaces. The unit can be programmed in Forth, C, or Microchip PIC-18 Assembler.

Full diagnostic indicators are installed to provide a rapid, visual indication of data flow on the RS-232 bus, as well as indicating the state of each input and output.

Systems developed with the MC-1 can be deployed either on purpose built hardware, or on the MC-1 itself.

Power is able to be provided from an external 7 - 35v DC source.

Part Number: MC-1         Price $200 AUS (GST Inc).
